DependaBar Pivoting Grab Bar (16"), Brushed
DependaBar Pivoting Grab Bar (16"), Brushed
Couldn't load pickup availability

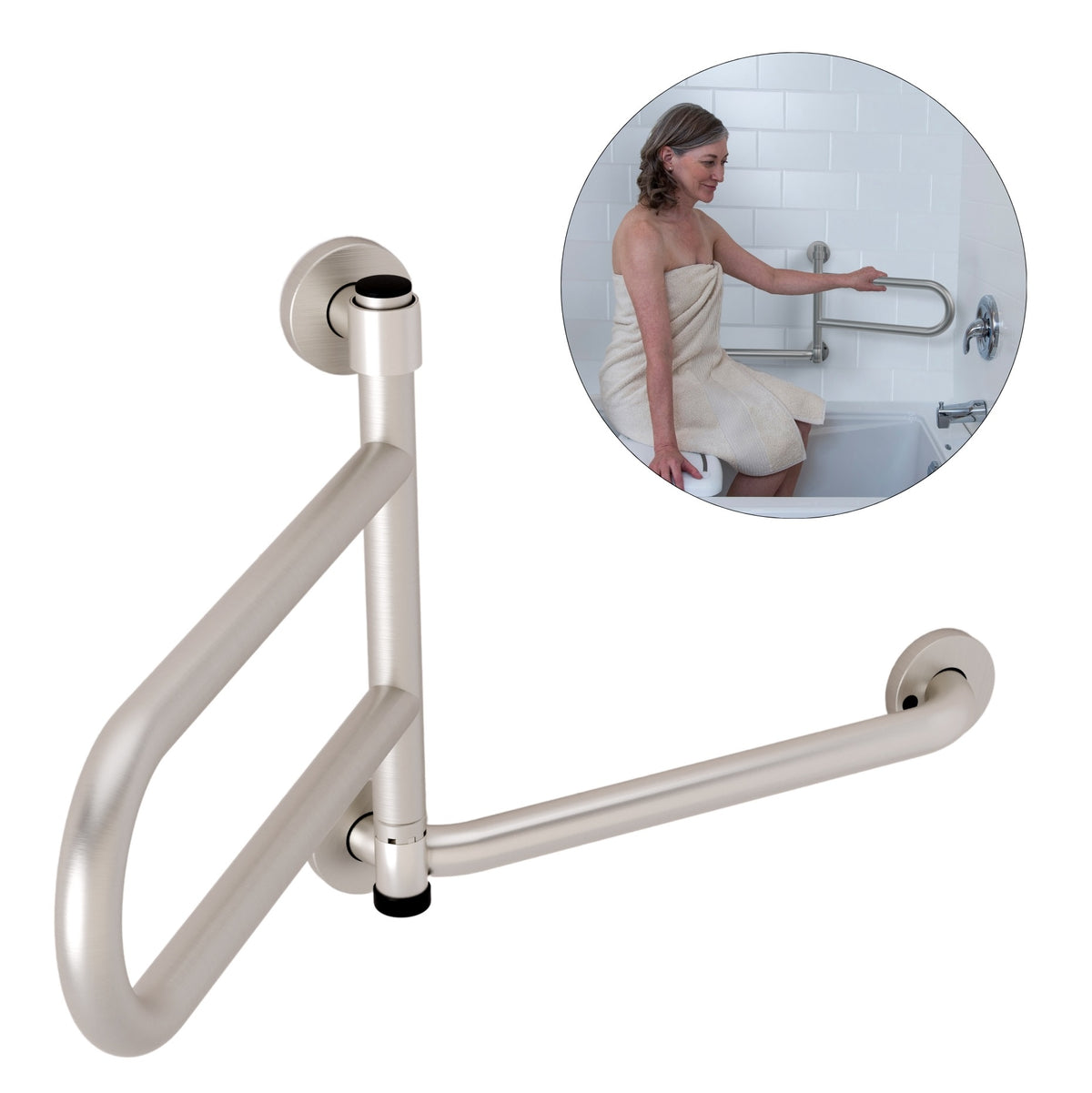

The HealthCraft DependaBar is a wall-mounted grab bar that combines a fixed bar with a pivoting support arm that locks in 5 positions. It is designed for support when stepping into the tub, standing from a seated position, or moving through the bathroom, and folds back against the wall when not in use.
Features

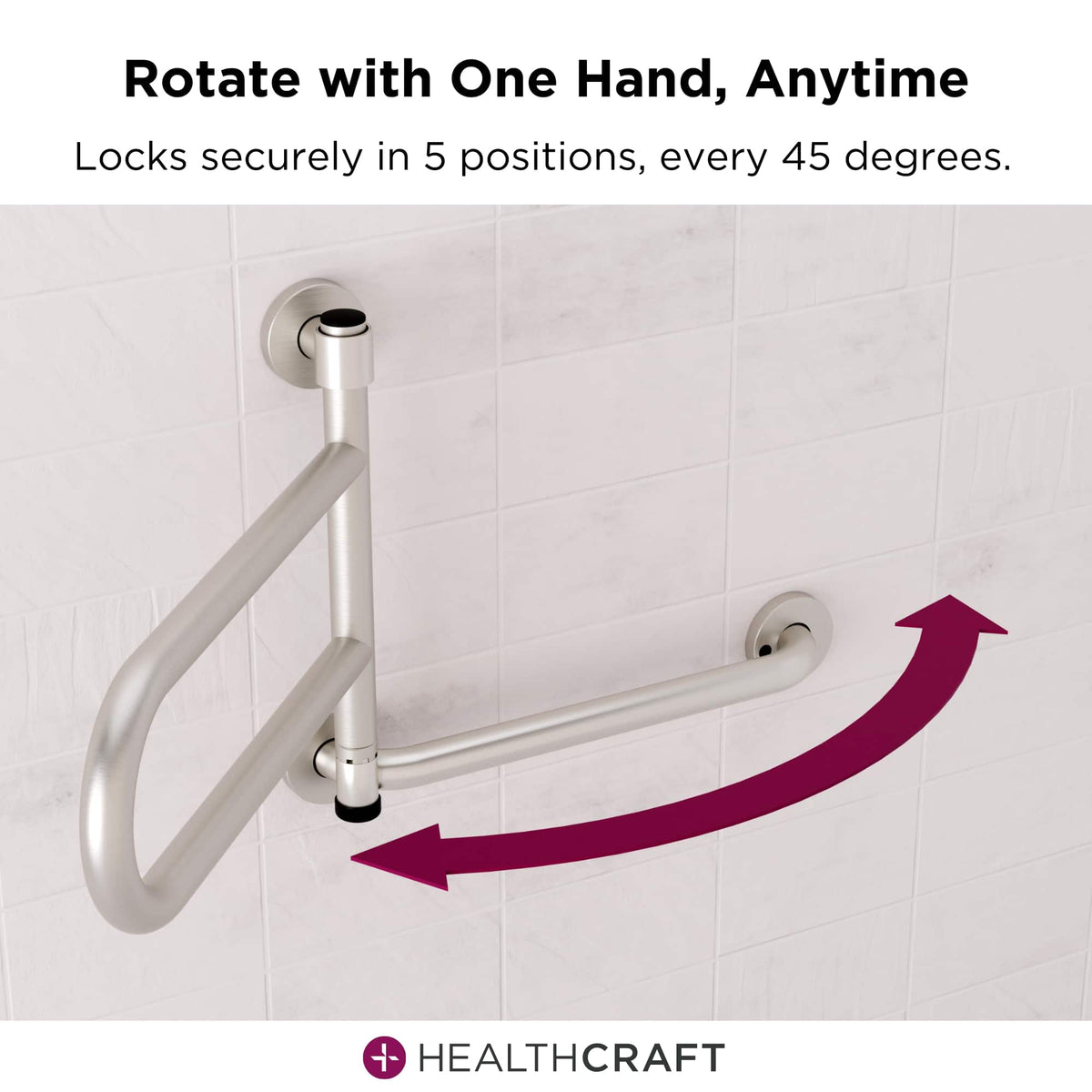

- Pivoting horizontal bar rotates and locks every 45°
- ADA compliant, with covered 9-hole flanges
- Folds back against the wall when not in use; suited to smaller bathrooms
- #304 rust-resistant stainless steel for wet environments
- Supports up to 300 lbs
Specifications
- Rail diameter: 1.25"
- Pivot rail length: 16"
- Pivot rail height: 15.5"
- Fixed rail length: 16"
- Material / finish: #304 stainless steel, brushed
- Weight capacity: 300 lbs
- Assembly / installation: Assembly and installation required
- Warranty: Limited Lifetime Warranty (does not cover damage from improper installation)
Installation: Professional installation by a qualified contractor is recommended. See Directions and Warnings for installation requirements.
Product information is sourced from the manufacturer and provided for informational purposes only. Always read and follow the instructions, warnings and specifications supplied with the product before installation and use.
Directions
Directions
Professional installation by a qualified contractor is recommended. HealthCraft's warranty does not cover damage from improper installation or third-party services, and HealthCraft's liability is limited to the purchase price of the product.
Installation required
- Choose the side (left or right) for the pivot feature.
- Level and mark the lower grab bar, drill pilot holes and fasten using the supplied #10 stainless steel wood screws (9 included) with appropriate waterproofing at each flange.
- Align the top flange 10-3/8" above the lower rail, level, mark, drill and fasten. Easy Mount™ Anchors (sold separately) are recommended to reinforce hollow wall behind the third flange.
- Slide the pivot rail up through the top flange and lower it onto the castellated collar.
- Insert the lift spacer, lock washer and bolt under the collar and tighten with the supplied 3/16" hex key.
- Install the vinyl caps over the collar grooves and the plastic caps over the flange cover holes.
Tools needed
Level, drill with pilot bit, and 3/16" hex key (supplied).
Read the complete manufacturer instructions supplied with the product before installation.
Warning
Warning
- Failure to follow the manufacturer's instructions could result in serious injury or death.
- Maximum user weight 300 lbs. Product is not intended to support full body weight.
- Install only to structurally sound walls. Vertically aligned flanges must be installed into structural wood. Add wood blocking if required.
- Do not install if the structure behind the wall is unknown.
- Do not install into metal studs.
- Do not install in fiberglass or acrylic shower enclosures with insufficient stiffness and strength.
- Pinch and entrapment points in locking positions.
- Rail and bathtub are slippery when wet.
- Professional installation by a qualified contractor is recommended.
- HealthCraft's warranty does not cover damage from improper installation or third-party services, and HealthCraft's liability is limited to the purchase price of the product.
