Healthcraft
P.T. Rail™, Hinged Wall-Mounted Support Rail
P.T. Rail™, Hinged Wall-Mounted Support Rail
Couldn't load pickup availability

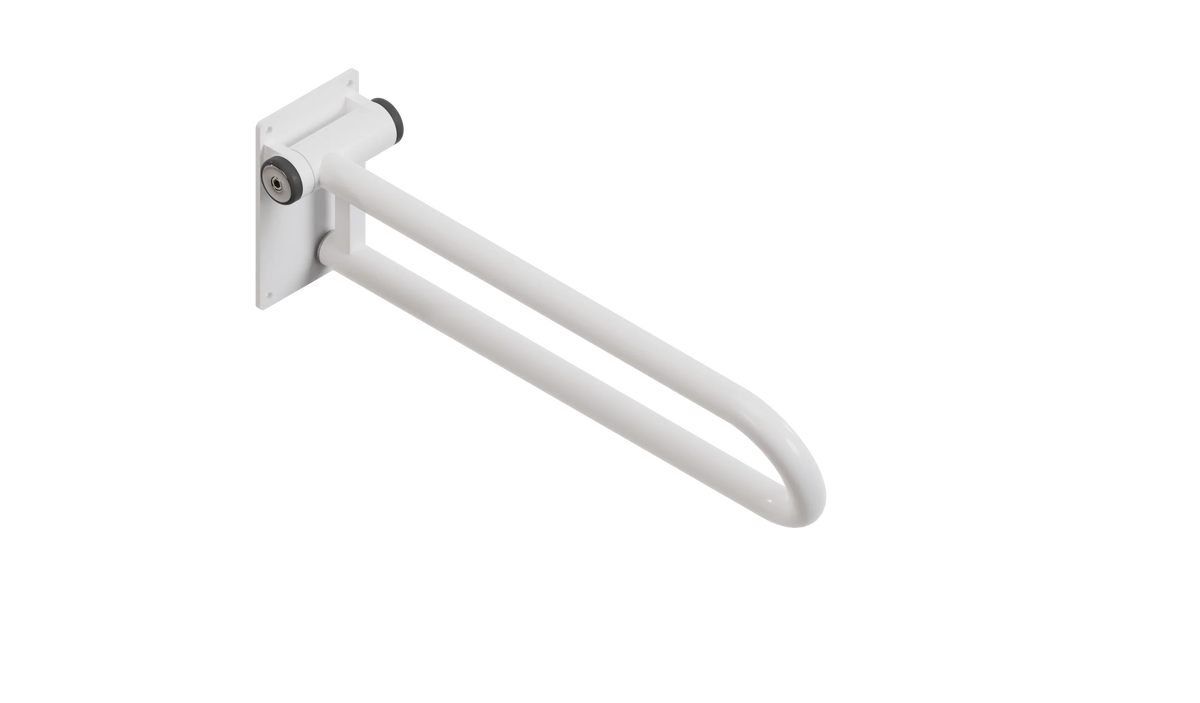

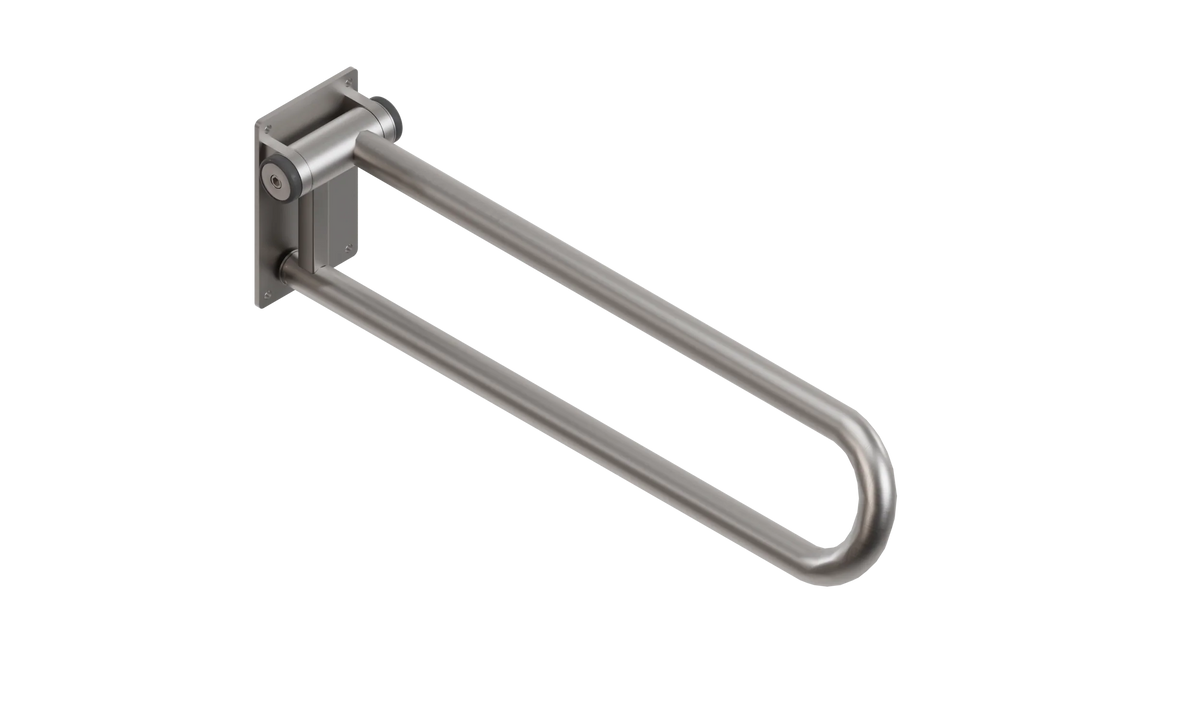

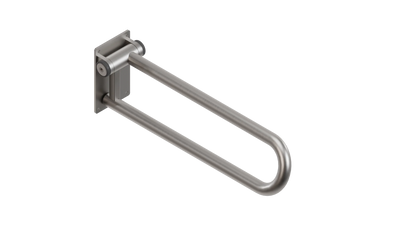

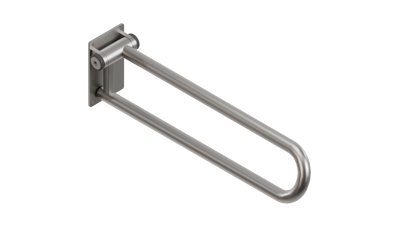

The HealthCraft P.T. Rail™ is a hinged, wall-mounted safety rail for use beside the toilet. Its offset rail design is intended to avoid wrist strain when sitting down or pulling up from a seated position, and the rail lifts flush against the wall for storage when not in use.
Features
- Offset rail design to avoid wrist strain during sit-to-stand transfers
- Friction hinge holds the rail in any position and prevents it from dropping to the down position
- Lifts up flush against the wall when not in use
- ADA-compliant 1.50" rail diameter; exceeds ADA 4.26.3 structural strength requirements (250 lbs)
- Supports up to 400 lbs

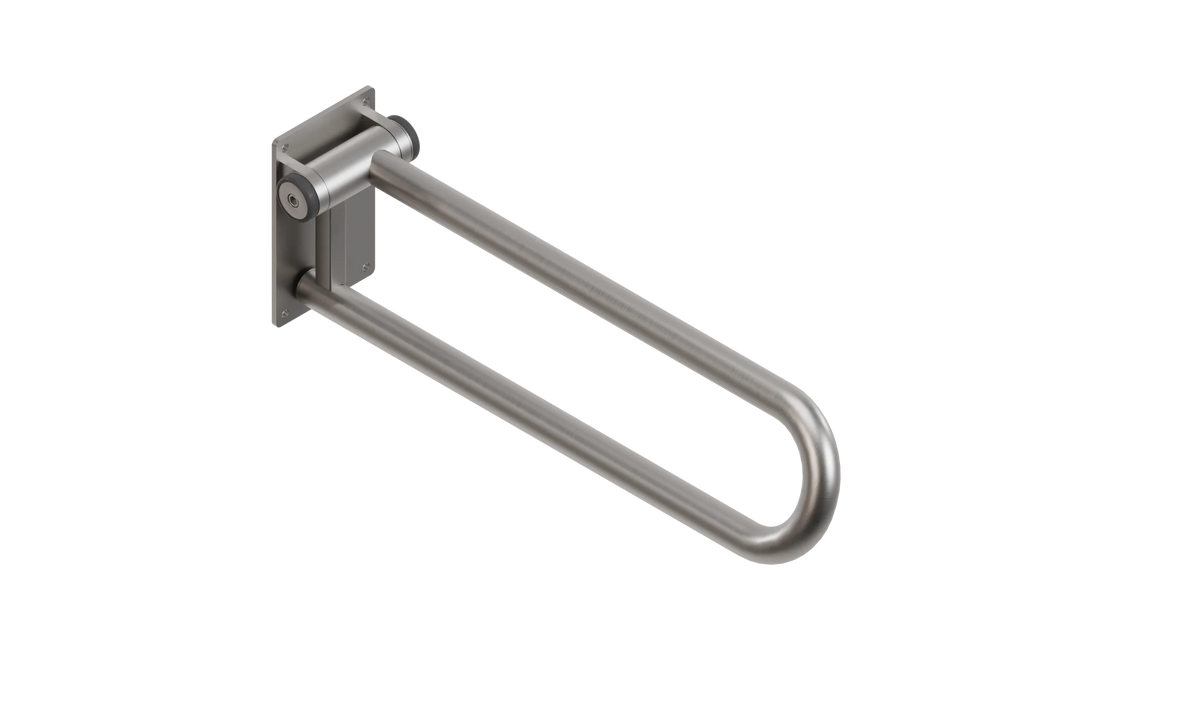

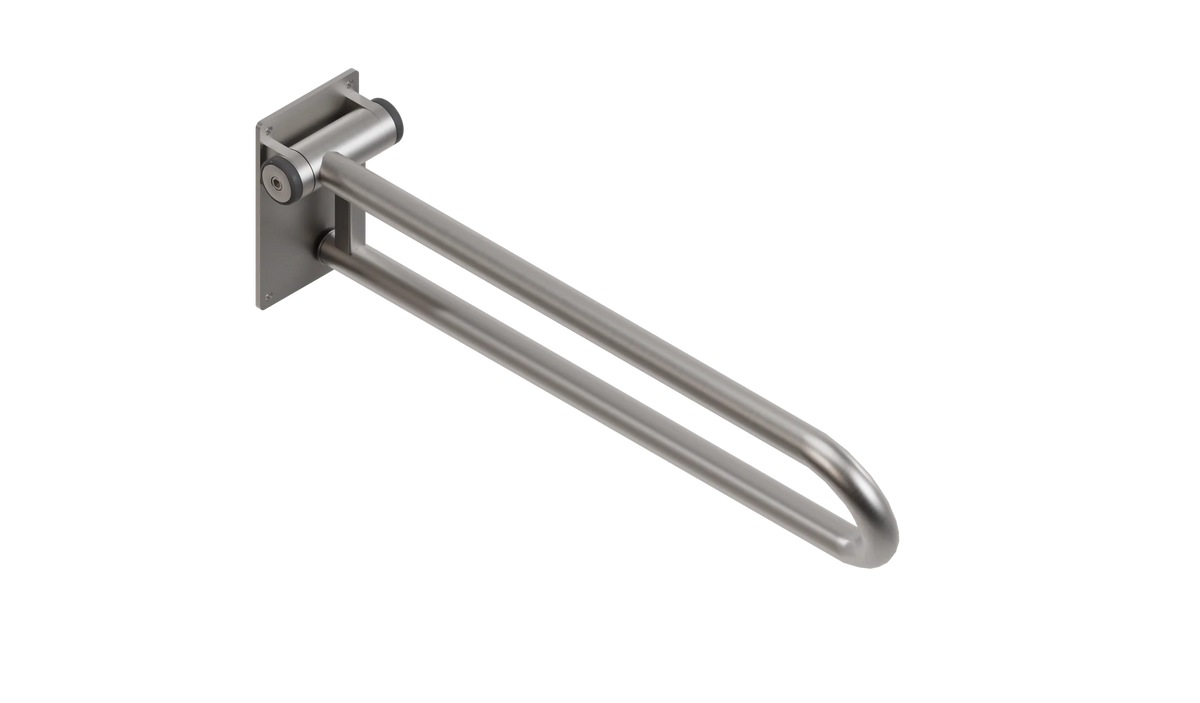

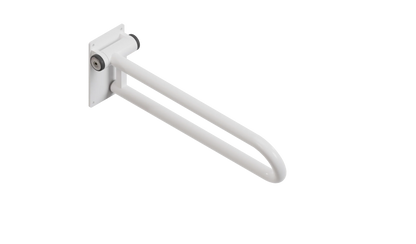

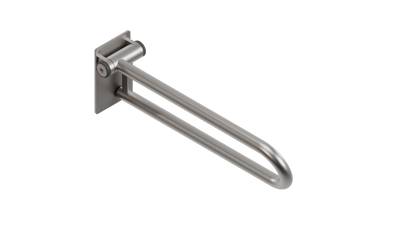

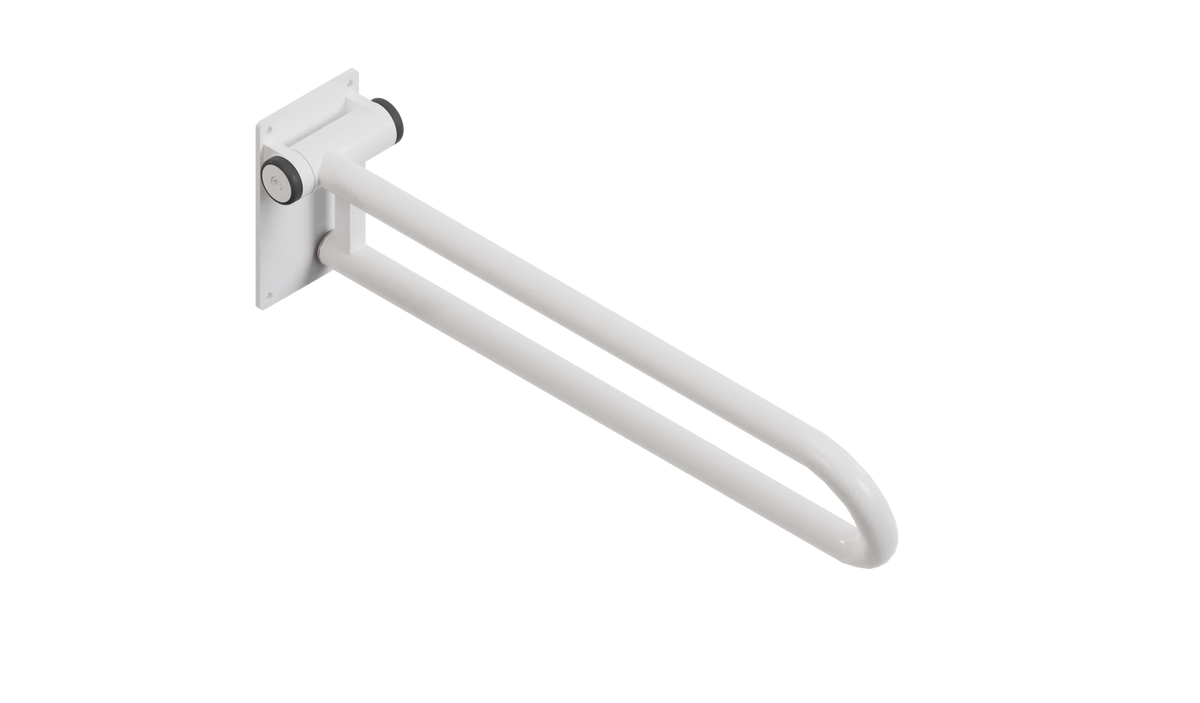

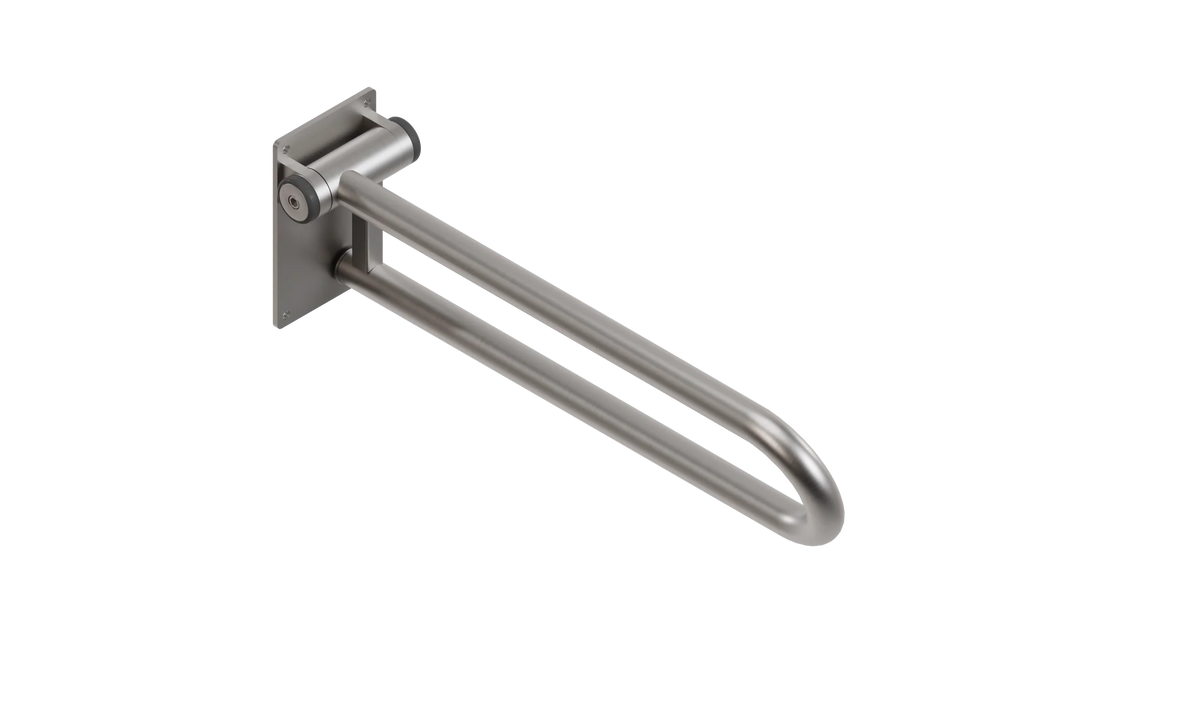

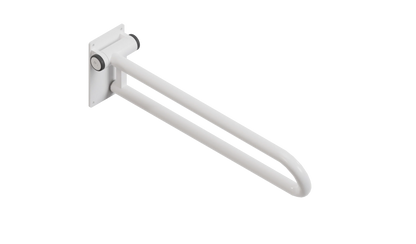

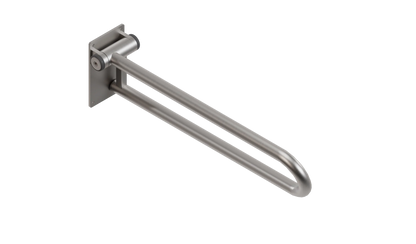

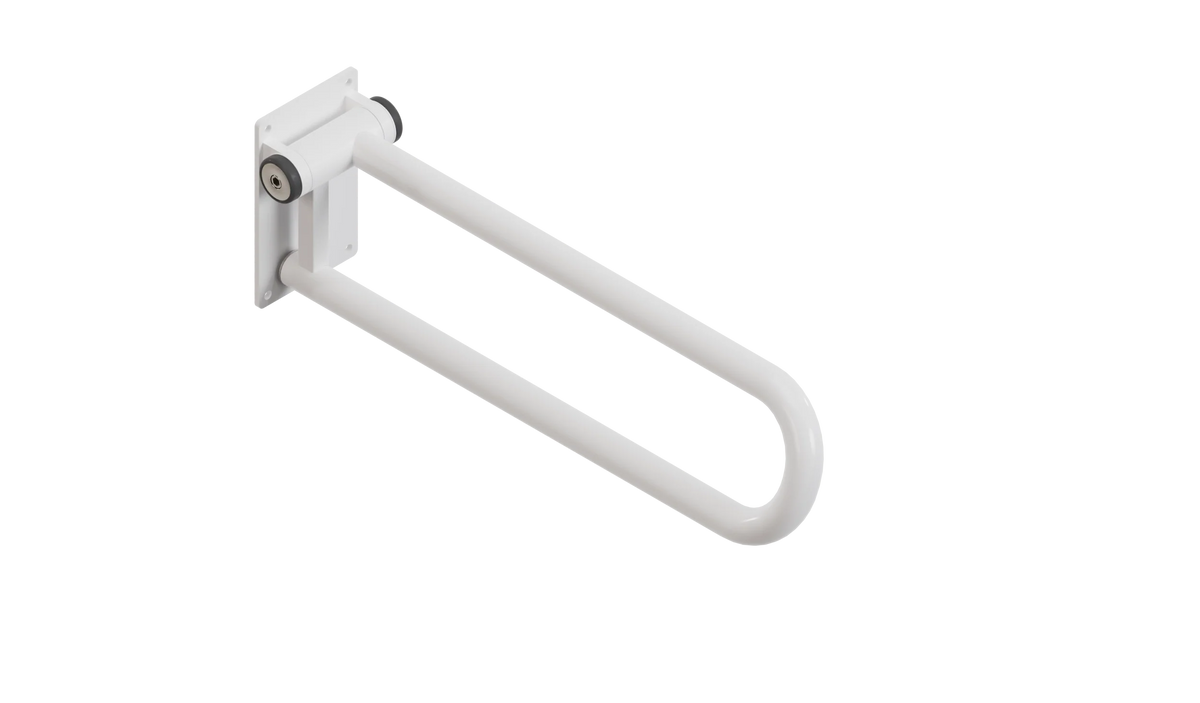

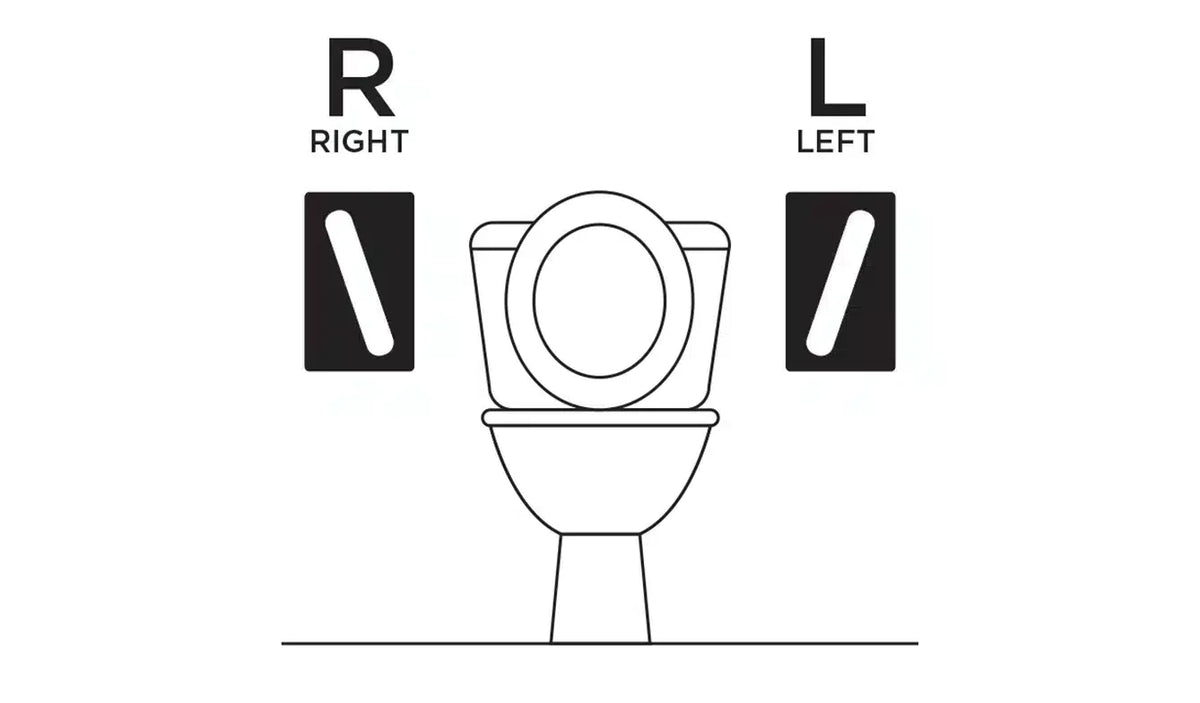

- Available in 28" or 32" lengths, left- or right-side mounting, in powder coat White (over carbon steel) or rust-resistant Stainless Steel
- Can be mounted on the P.T. Rail™ Floor Mast (sold separately) where wall mounting is not an option
Specifications

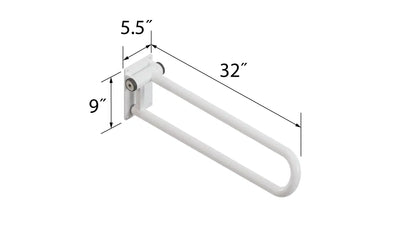

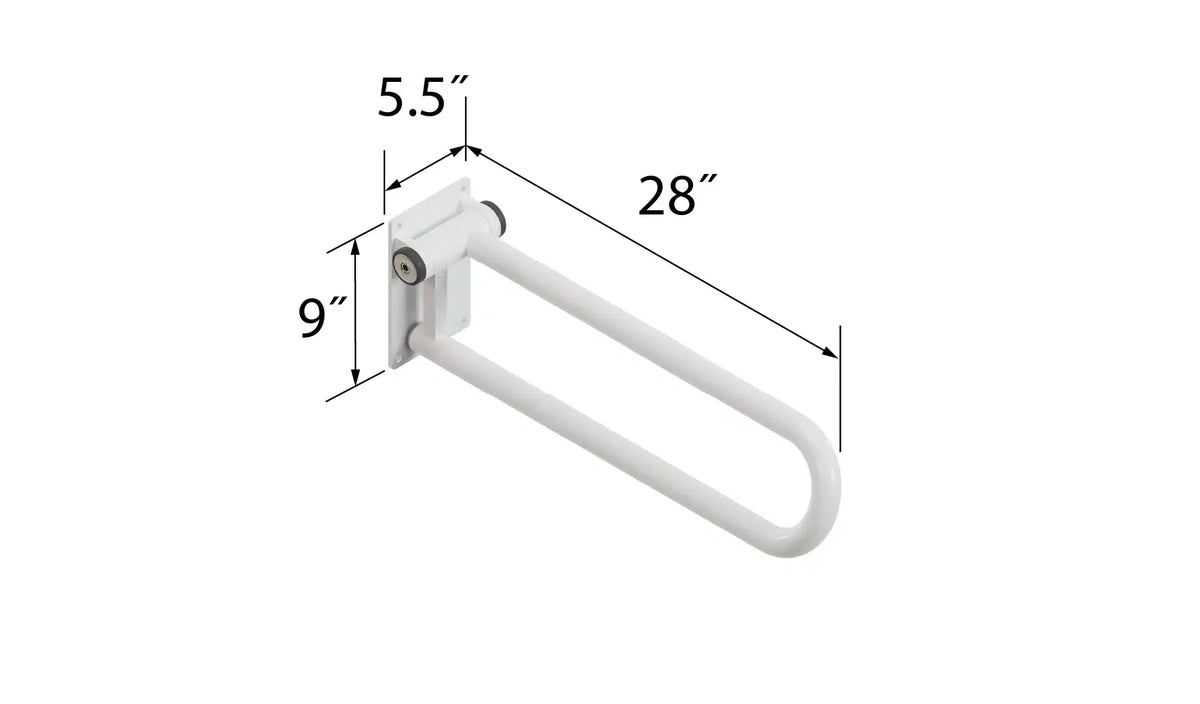

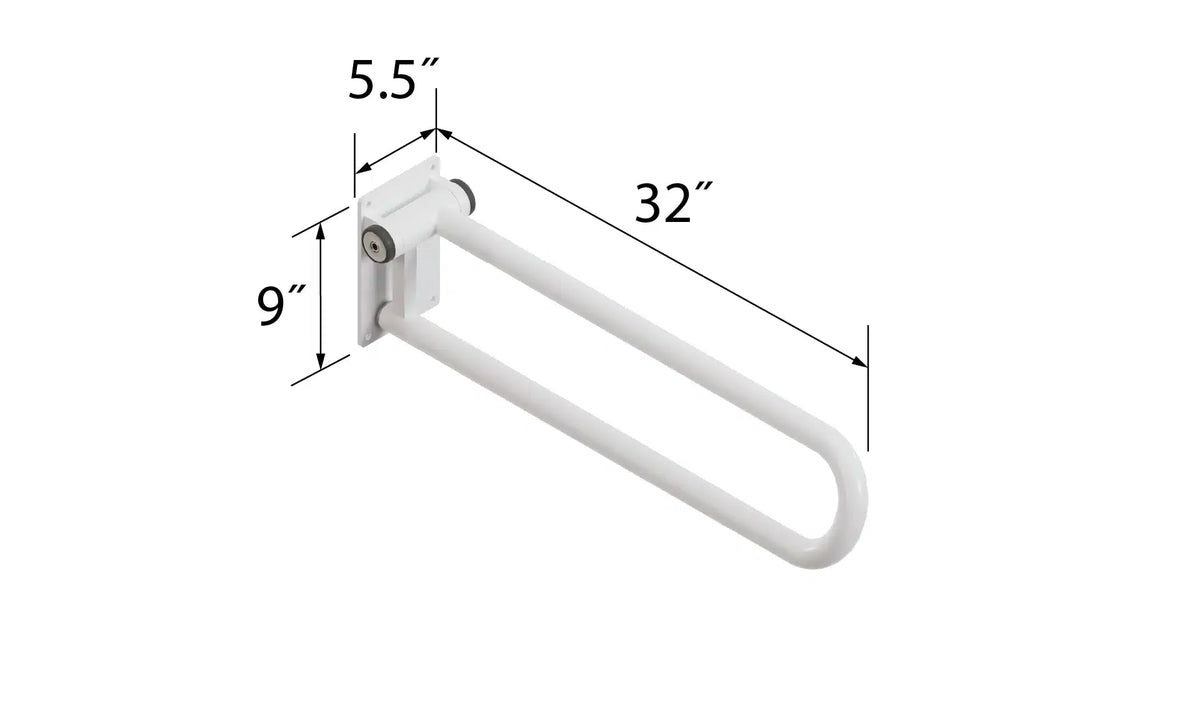

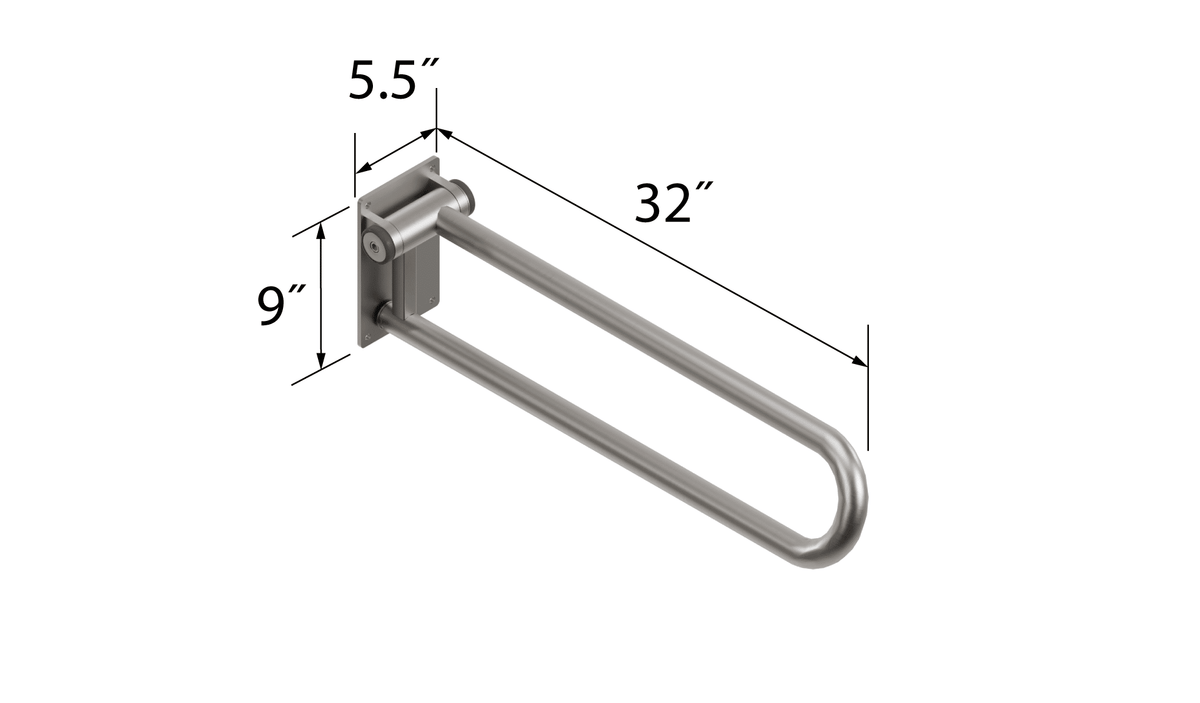

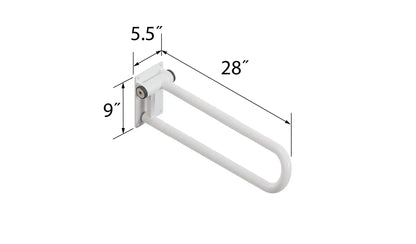

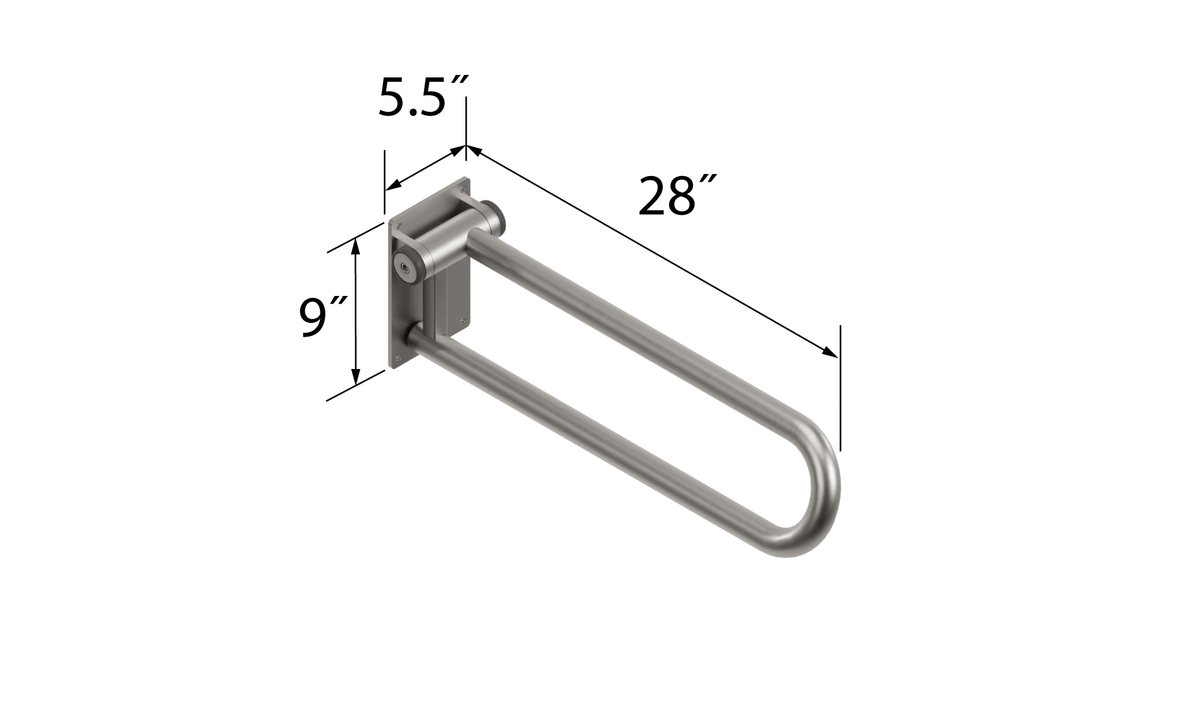

- Rail length: 28" or 32"
- Rail diameter: 1.50"
- Material / finish: Anti-microbial powder coat white on alloy steel, or brushed stainless steel
- Weight capacity: 400 lbs
- Recommended mounting height: 32–34" to top of rail; 28–32" between rails if installed on both sides of a toilet
- Assembly / installation: No assembly; installation required
- Warranty: Limited Lifetime Warranty (does not cover damage from improper installation)
Installation: Professional installation by a qualified contractor is recommended. See Directions and Warnings for installation requirements.
Product information is sourced from the manufacturer and provided for informational purposes only. Always read and follow the instructions, warnings and specifications supplied with the product before installation and use.
Directions
Directions
Professional installation is recommended. HealthCraft's warranty does not cover damage from improper installation or third-party services, and HealthCraft's liability is limited to the purchase price of the product.
Installation required
- Hold the rail in the intended location and confirm it moves freely in all positions with room above to fold up.
- Use the wall plate as a template to mark the holes.
- Drill pilot holes.
- Fasten to the wall with the supplied 1/4" x 3" lag bolts, lock washers and flat washers (5 each). For concrete walls, use sleeve or wedge type anchors.
Tools needed
Drill with pilot bit and 5/16" hex key (supplied).
Read the complete manufacturer instructions supplied with the product before installation.
Warning
Warning
- Failure to follow the manufacturer's instructions could result in serious injury or death.
- Maximum user weight 400 lbs. Product is not intended to support full body weight.
- Bear weight on the rail ONLY when the handle is in the down position.
- Install only to structurally sound walls. Add wood blocking if required.
- Do not install if the structure behind the wall is unknown.
- Do not install into metal studs.
- Supplied fasteners are for wood structure only (minimum 2" thread engagement). Other fasteners must have a screw retention rating of at least 600 lbs.
- Pinch point between rail and wall plate.
- Rail and bathtub are slippery when wet.
- Professional installation by a qualified contractor is recommended.
- HealthCraft's warranty does not cover damage from improper installation or third-party services, and HealthCraft's liability is limited to the purchase price of the product.
